BVH Blitz 240 HID mod - New, FULL Pictoral
« on: January 30, 2009, 02:55:28 AM »
Jetskimark and LarryK did their Blitz mods before I did.  I just wanted to share my method of mounting the HID bulb into an unmodified body.  New stuff below

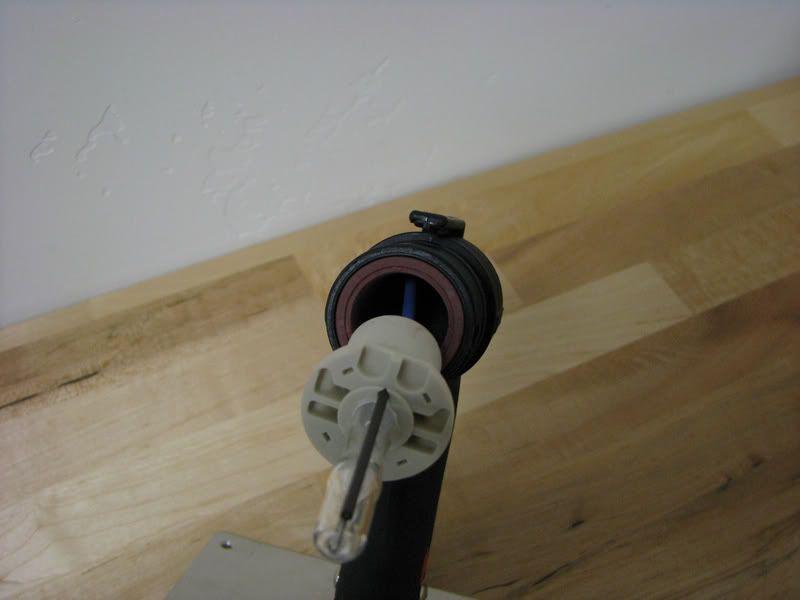

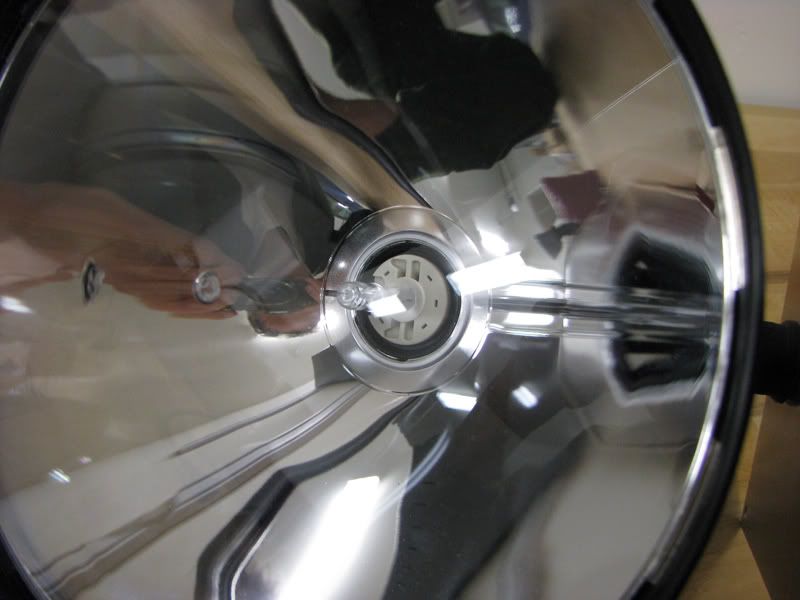

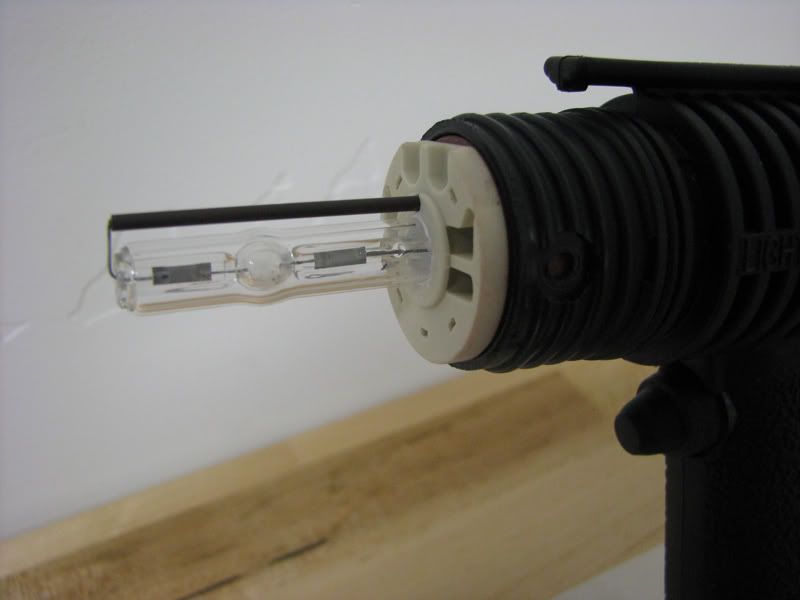

Purchased two hi-temp plastic bushings from McMasterCarr and had to grind down the outer diameter of the inner bushing by about .080"  Everything is a light press fit for Lip's 100 Watt bulb.  Just remove the metal flange.

The focusing system is simply screwing in or out the reflector ass'y on the threaded end of the light body.  There's a detent arm on the body that drops into many linear groves on the reflector housing base to maintain focus once set.  There's probably a good 5/8" of focus travel. available.  More than enough to cover any difference in new style bulb chamber (read filament) location.  In my system, the center of the HID bulb chamber ended up about 1/32" further out as compared to the Halogen bulb.  Just had to screw up the reflector by about 1/8 of a turn.

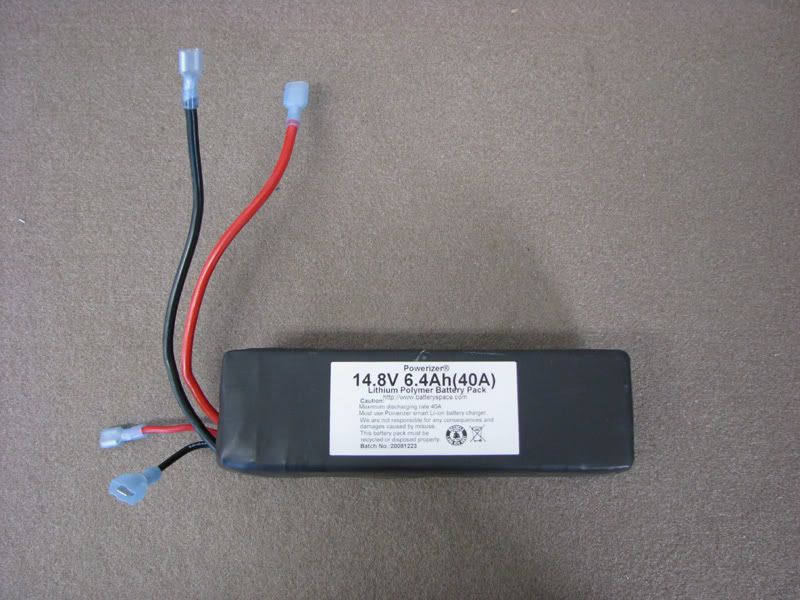

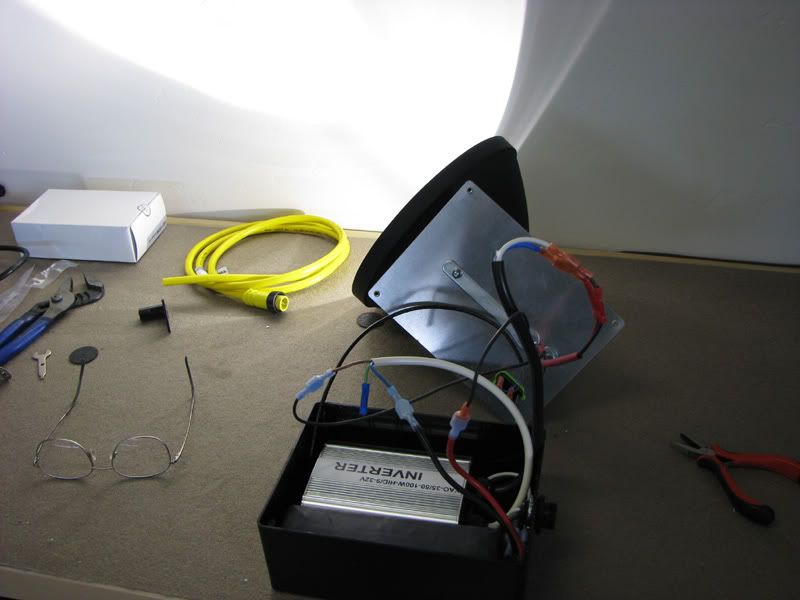

Now the battery & ballast box is another story.  Used a Radio Shake plastic project box.  Not too happy with it.  Needs some work.  It's heavy with the 100 Watt (83 to the bulb) ballast and the 6.4 AH Li-Poly battery.

Original on/off function is maintained.

OK, here's the full mod pictorial.

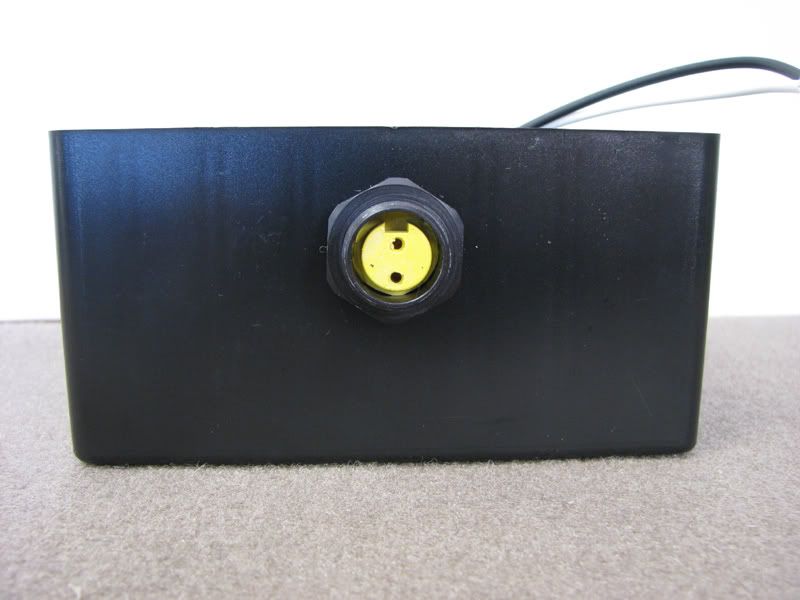

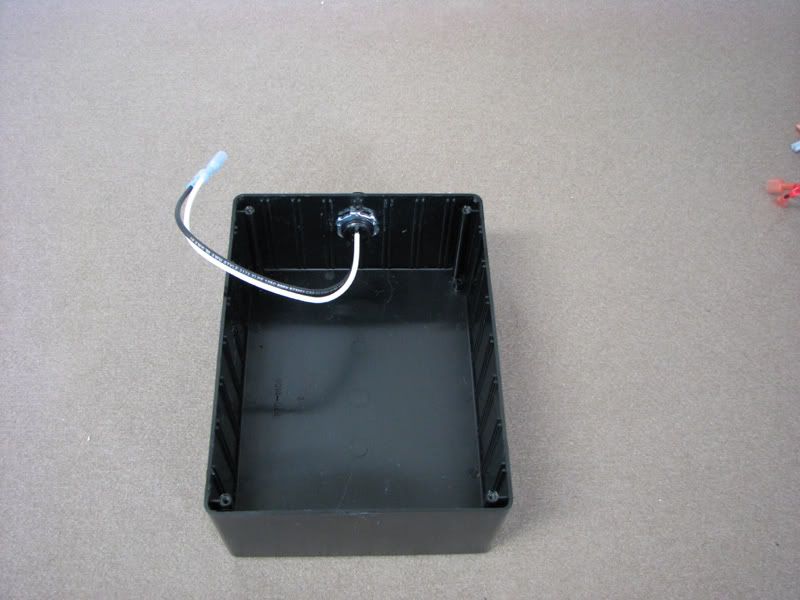

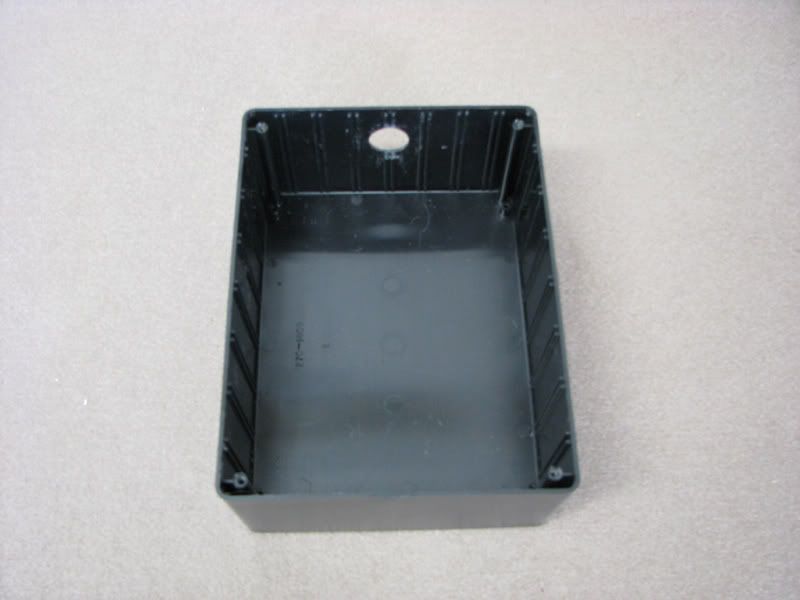

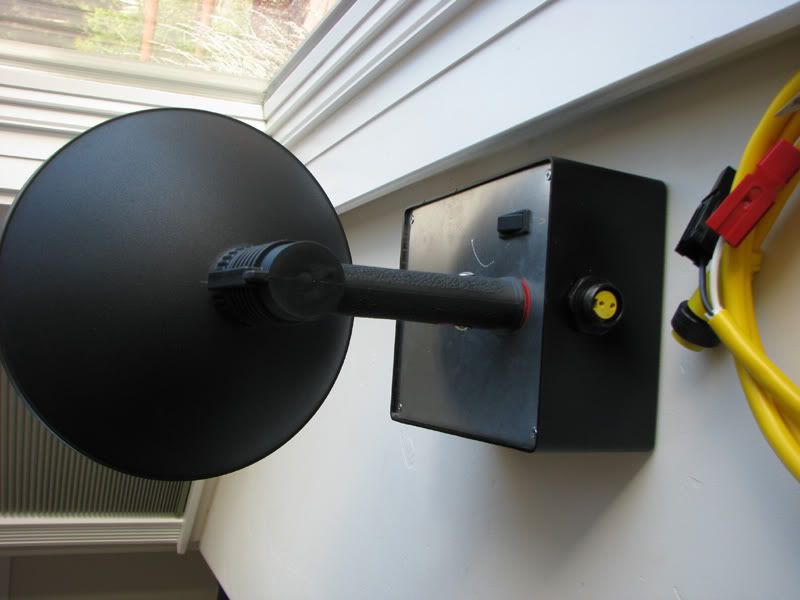

I wanted to not have to unscrew the box top every time the battery needed charging so I found a polarity keyed, two terminal quick connect/disconnect with locking nut to charge through.  These wires hook to the charging wires of the Li-Po pack - not the discharge wires.  I don't know for sure, but I am pretty sure I can't run the light with a power source using this same cord.  Not gonna try.

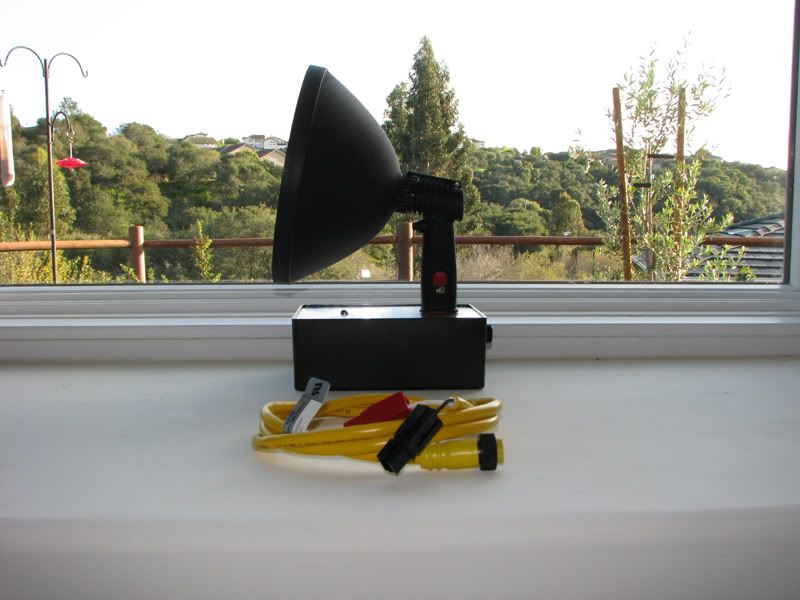

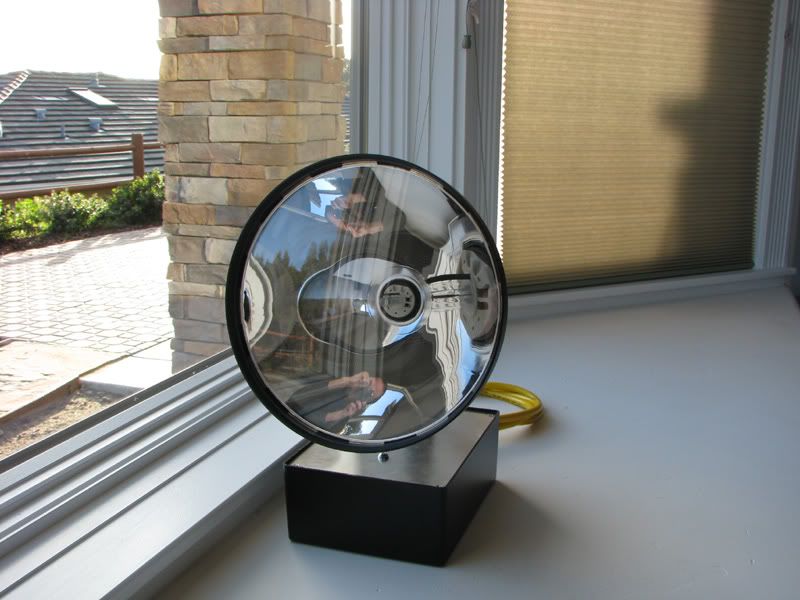

The finished light without charging cord weighs 5 lbs, 15.5 oz - under 6 lbs!

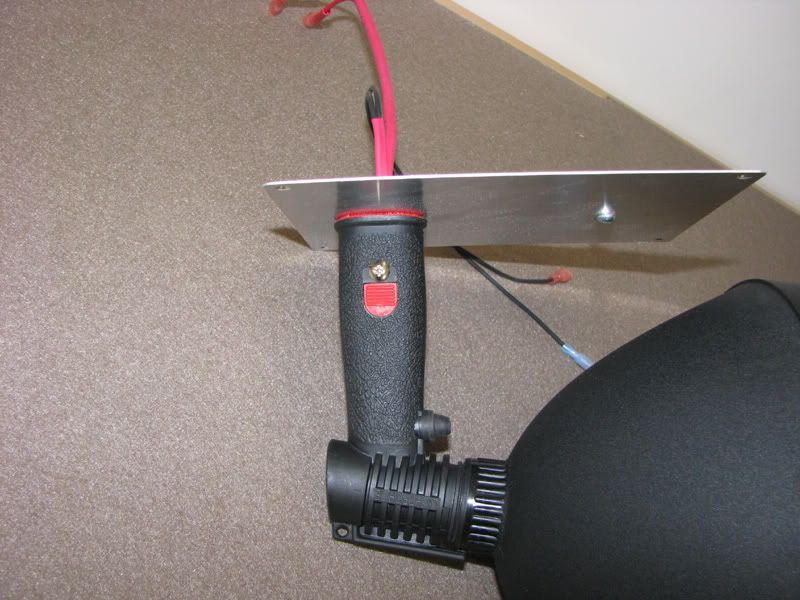

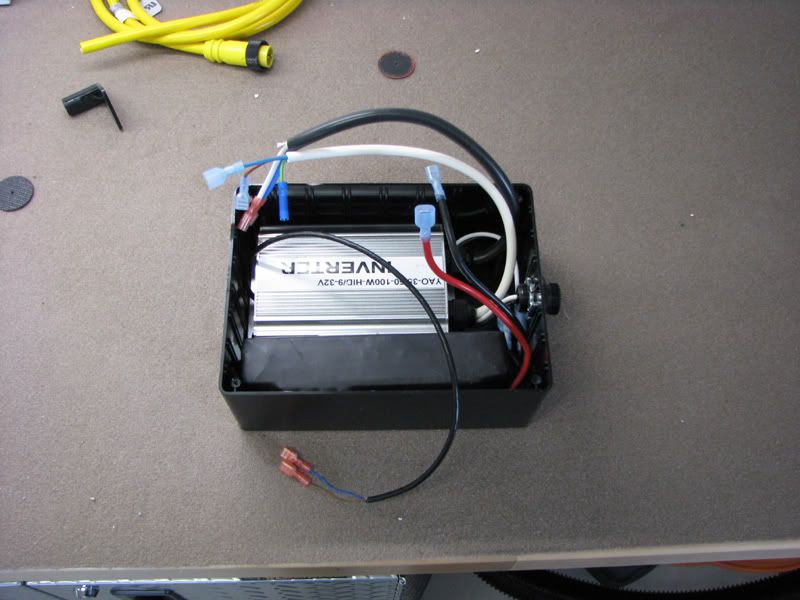

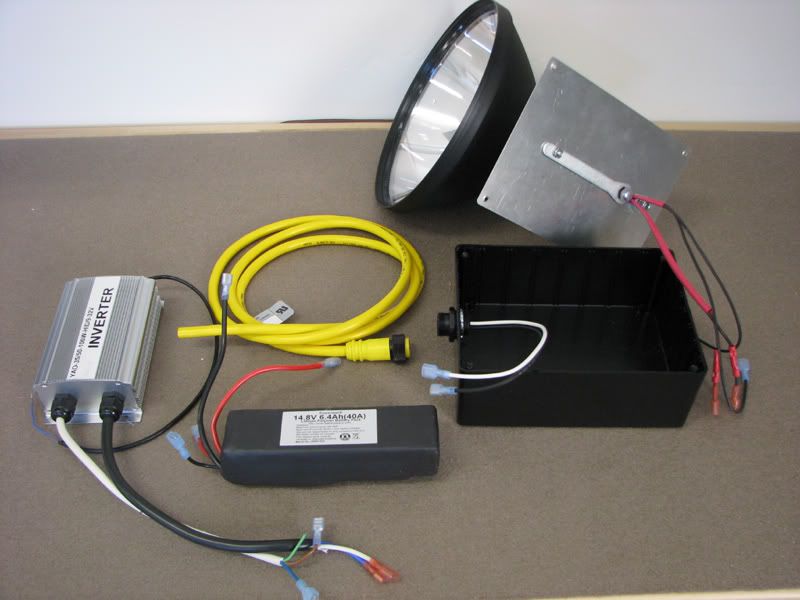

The components.  The wrench-looking thing is a strengthener for the thin, metal box top.  Too much flex without it.

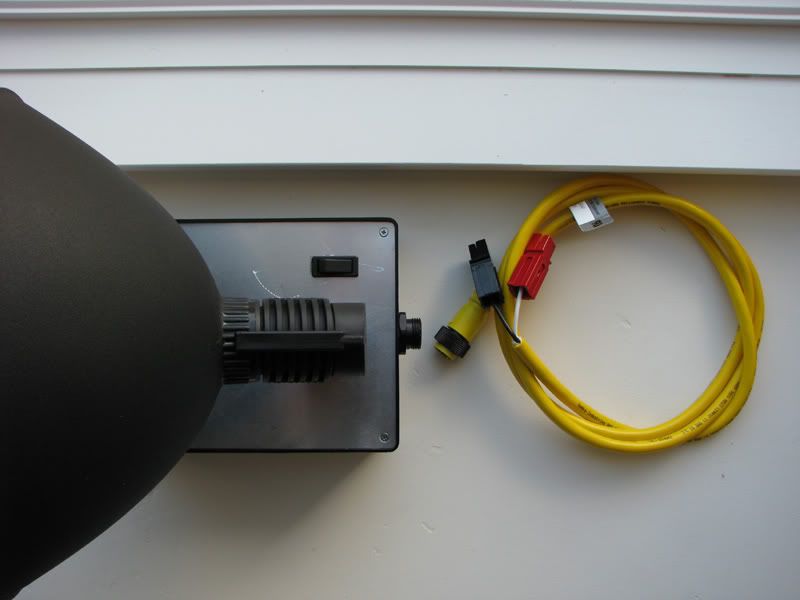

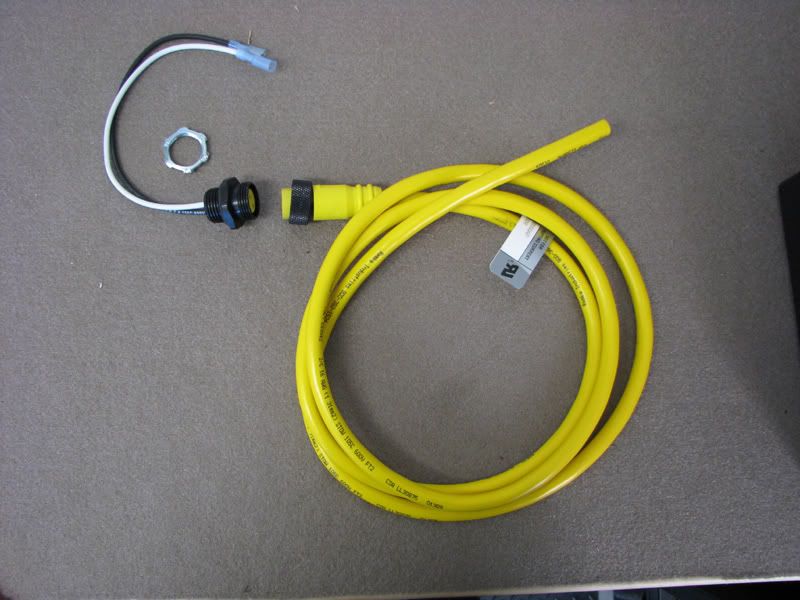

The charging cords

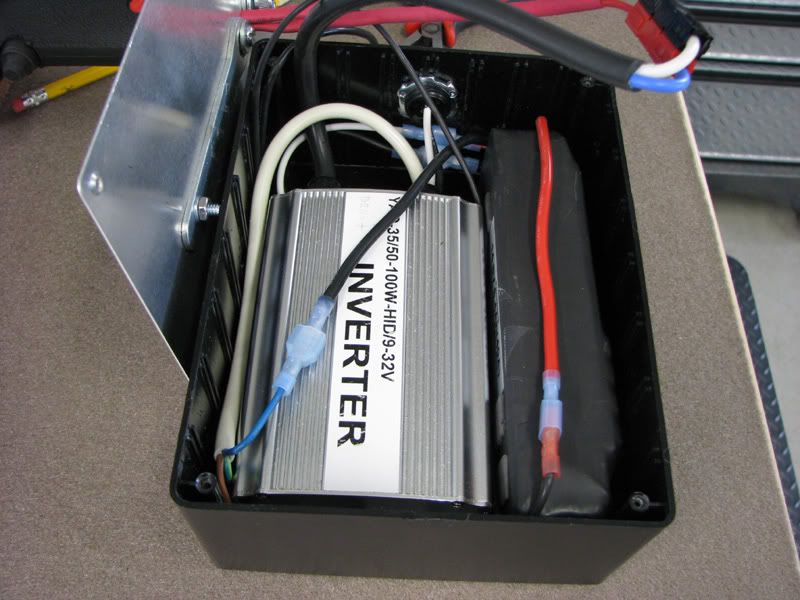

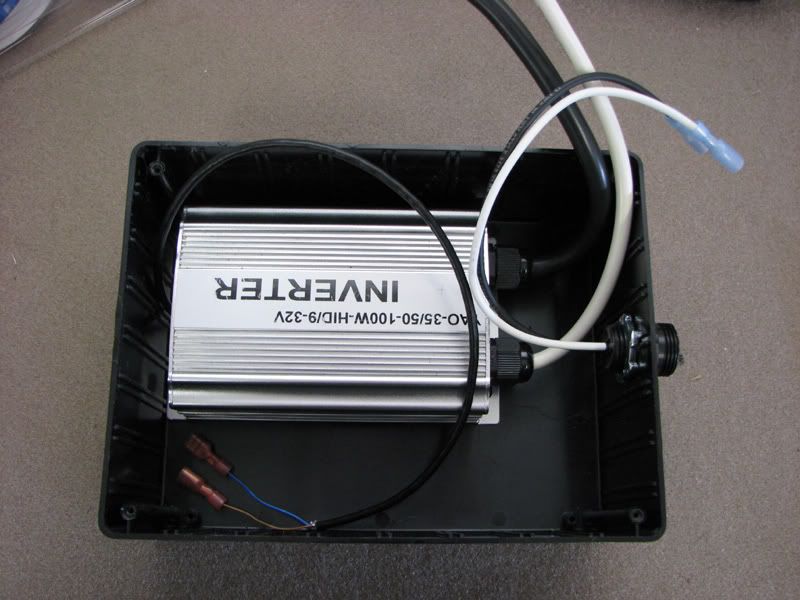

The ballast and battery are held in with velcro so easily removable.  Thanks to LarryK for this idea

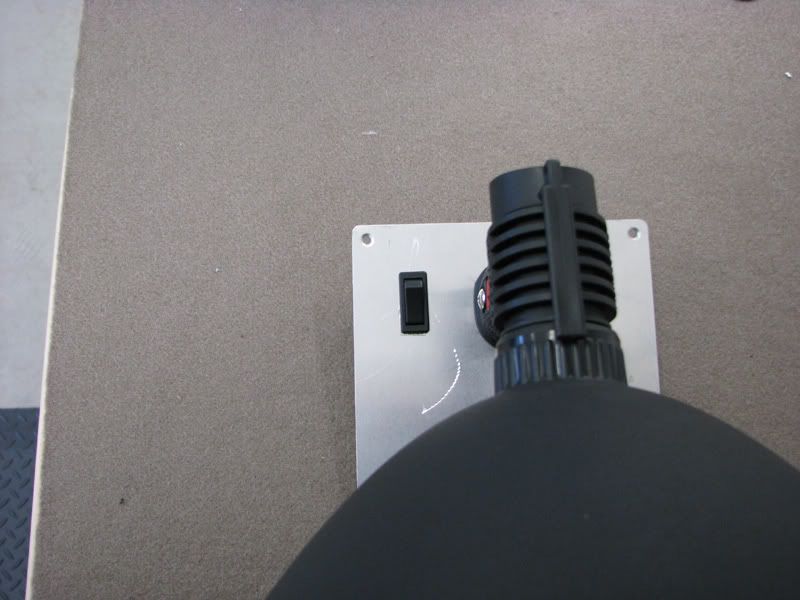

The rocker switch toggles between 35 Watt and 100 watt (input power)


I had to change out the high Voltage wire connectors from
typical Beldon spades to 30 Amp Anderson quick connect/
disconnects.  The Beldon connectors don't fit tight enough
together to prevent initial arcing and a no-start.

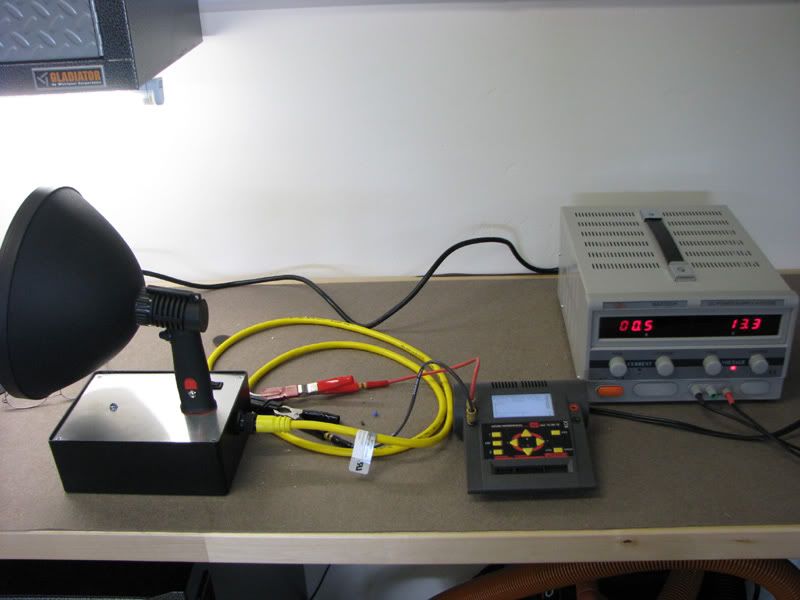

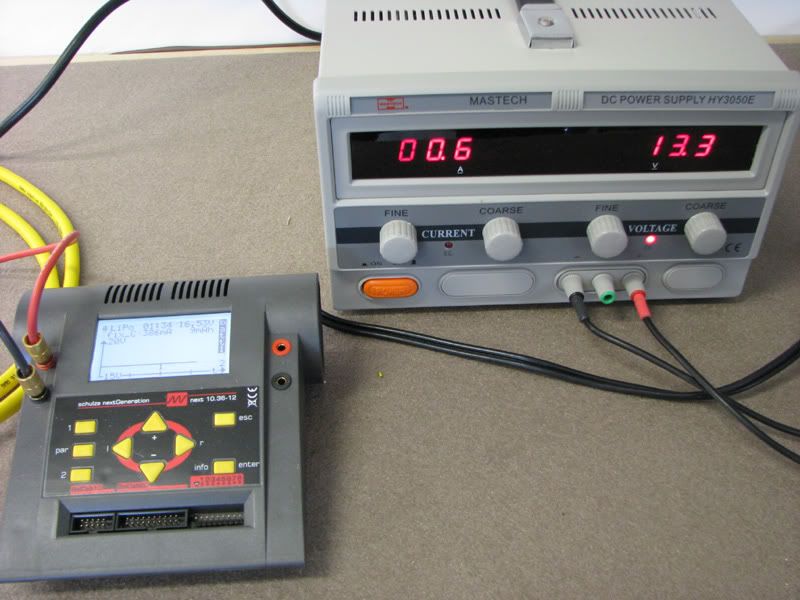

My Schulze charger and Mastec 30V-50Amp Power Supply at work!









Beamshots tonight if the weather holds.  I'll compare at 100 watts with my Barn Burner and with some 30/35 Watt lights on 35 watt setting.





« Last Edit: February 10, 2009, 03:56:01 AM by BVH »
WWII 60" Anti Aircraft Carbon Arc (Sold), Short Arcs: 1.6KW NightSun, 1KW Marconi, 1KW VSS-3a, .8KW TrakkaBeam, 600 Watt M-134 Gun Light, 300 Watt Locators, Megaray, 150 Watt Set Beam, 150 Watt Communicator, Maxabeam Gen3, Fritz HandSun, LarryK14@52V

Offline Lips

  • Moderator
  • Flashaholic
  • *
  • Posts: 3290
  • Mighty Fine :>) - Tasha Nicole and Marisa Miller
    • View Profile
    • Paypal = vdcjr@comcast.net
Re: BVH method of Blitz HID 240 conversion bulb mounting
« Reply #1 on: January 30, 2009, 05:02:43 AM »



OK, I gotta have one of these at some point!


Does your bulb installation retain the focus system from flood to spot?




.
Fire Foxes FF4 in stock and ready to ship.
You can send me a PM me here at site or contact me directly at FireFoxes@comcast.net for information.
Prices and info at the top of this post:
http://flashlight-forums.com/index.php?topic=13795.0

Offline BVH

  • Full Member
  • ***
  • Posts: 177
    • View Profile
Re: BVH method of Blitz HID 240 conversion bulb mounting
« Reply #2 on: January 30, 2009, 06:23:59 AM »
Yes, the focusing system is simply screwing in or out the reflector ass'y on the threaded end of the light body.  There's a detent arm on the body that drops into many linear groves on the reflector housing base to maintain focus once set.  There's probably a good 5/8" of focus travel. available  More than enough to cover any difference in new style bulb chamber (read filament) location.  In my system, the center of the HID bulb chamber ended up about 1/32" further out as compared to the Halogen bulb.  Just had to screw up the reflector by about 1/8 of a turn.
WWII 60" Anti Aircraft Carbon Arc (Sold), Short Arcs: 1.6KW NightSun, 1KW Marconi, 1KW VSS-3a, .8KW TrakkaBeam, 600 Watt M-134 Gun Light, 300 Watt Locators, Megaray, 150 Watt Set Beam, 150 Watt Communicator, Maxabeam Gen3, Fritz HandSun, LarryK14@52V

Offline JetskiMark

  • Newbie
  • *
  • Posts: 23
    • View Profile
Re: BVH method of Blitz HID 240 conversion bulb mounting
« Reply #3 on: February 09, 2009, 02:12:37 AM »
Nice build Bob.

I am going to have to make one of those too.

I would like to see some beamshots comparing it to your Barn Burner.
Regards,
Mark


Offline Lips

  • Moderator
  • Flashaholic
  • *
  • Posts: 3290
  • Mighty Fine :>) - Tasha Nicole and Marisa Miller
    • View Profile
    • Paypal = vdcjr@comcast.net
Re: BVH method of Blitz HID 240 conversion bulb mounting
« Reply #4 on: February 09, 2009, 05:29:24 AM »



The Blitz outthows everything I've seen and is adjustable focus...



Thor - Costco HID - Blitz (LarryK) - Mule - N30 - Helios PF-50






Blitz (LarryK) - Mule - N30





.
Fire Foxes FF4 in stock and ready to ship.
You can send me a PM me here at site or contact me directly at FireFoxes@comcast.net for information.
Prices and info at the top of this post:
http://flashlight-forums.com/index.php?topic=13795.0

Offline BVH

  • Full Member
  • ***
  • Posts: 177
    • View Profile
Re: BVH Blitz 240 HID mod - New, FULL Pictorial
« Reply #5 on: February 10, 2009, 02:01:32 AM »
Bump for new stuff added to end of 1st post.
WWII 60" Anti Aircraft Carbon Arc (Sold), Short Arcs: 1.6KW NightSun, 1KW Marconi, 1KW VSS-3a, .8KW TrakkaBeam, 600 Watt M-134 Gun Light, 300 Watt Locators, Megaray, 150 Watt Set Beam, 150 Watt Communicator, Maxabeam Gen3, Fritz HandSun, LarryK14@52V

Offline JetskiMark

  • Newbie
  • *
  • Posts: 23
    • View Profile
Re: BVH Blitz 240 HID mod - New, FULL Pictorial
« Reply #6 on: February 10, 2009, 02:55:08 AM »
Nice new pics and info.

How many amps does that ballast draw from the pack at each setting?

I have that same ballast on the way.

I might mod my vintage Coleman instead of buying another Blitz.

My Coleman is the same one that Nitro used for his HID conversion here:

http://www.candlepowerforums.com/vb/showthread.php?p=1376389#post1376389
Regards,
Mark


Offline BVH

  • Full Member
  • ***
  • Posts: 177
    • View Profile
Re: BVH Blitz 240 HID mod - New, FULL Pictorial
« Reply #7 on: February 10, 2009, 03:34:44 AM »
Mark, here's a quote from one of my posts in the Maximus thread.

"Warmed up and settled down using a regulated power supply:

Input power - 8.2 Amps @ 13.99 Volts totaling 114.72 Watts
Output power - .85 Amps @ 98.5 Volts totaling 83.7 Watts

A 27% loss through the ballast."


From memory, I believe the draw at the 35 Watt setting was in the mid 3's.

All costs include tax and shipping and are rounded to the nearest $5.00

1.    Blitz …………………………………………………….$125
2.   Li=Po battery………………………………………..$150
3.   Ballast………………………………………………….$130
4.   Rocker switch………………………………………$    8
5.   Charging cables……………………………………$ 34
6.   Bulb bushings……………………………………..$  30
7.   Bulb…………………………………………………….$  26
8.   Anderson connectors………………………….$  15
9.   Misc connectors, silicone wire…………….$   5
10.   Misc hardware…………………………………….$   5
11.    Box……………………………………………………..$ 12
Total……………………………………………………………….$540

I was going to do a mini HID shoot but too many of my lights were not fully charged so no beamshots tonight. In the next couple of nights, I'll try to get them in.
