HID Bulb Temp Examples and Info
« on: June 22, 2008, 10:58:35 AM »
3K, 3K, 4K, 4K
5K, 5K, 6K, 6K
8K, 8K, 10K, 10K
12K, 12K, 3K, 3K



















http://bavtoys.com/lightingfaq.php

Lighting FAQ

3 Types of Headlights

Parabolic

The light source hits a parabolic reflector that will determine the main focus of the beam. The parabolic reflector with its highly reflective "silvered" or chromed surface. First used in the early 1900s, they have been refined for the last 100 years. These reflectors feature the shape of a parabola with the light source located at the reflectorís focal point. Moving the light source toward the reflector will spread the light, while moving the source of light away from the reflector will cause the light rays to converge.

The parabolic reflector is most efficient in applications that donít require sharp cut-offs (such as low-beam light patterns), but allow all of the reflector and lens size to be utilized. Larger parabolic reflectors project more light, making them ideal for applications that arenít restricted by available installation space.


Free Form or Free Surface

Similar to Parabolic with a clear front lens. The reflector surface and bulb position are optimized by high-performance computers to achieve a correspondingly high light output.
Reflectorís surface calculations are point by point to illuminate specific areas of the road. This lighting technology is clearly identified by the crystal clear cover lens that gives the headlamp its unmistakable character. Developed by Hella and used for the first time in series production in 1988, this technique made it possible to achieve excellent beam pattern solely produced by the shape of the reflector - the cover lens with a purely protective function. "Reflector" is a term commonly used to describe both Parabolic and Free Form lighting.

Projector/Ellipsoid

The principle is similar to that used in a slide projector. An parabolic lens (reflector) directs the light to a focusing lens (projector) that aims and projects it. A shield positioned between the reflector and projector provides the desired DOT, ECE, JDM cutoff.


Bulb Types

HALOGEN
Halogen Lightning (Halogen) has been used in automotive lighting for 50+ years. Halogen is a conventional direct-current direct-circuit setup. The bulb houses a filament commonly made of tungsten metal - a delicate loose coil of exotic wire. The filament is held up by two chemically-treated, copper-coated steel (or molybdenum) lead wires. On some bulbs, like the 9006/HB4 shown below, the capsule encases the wire and iss capped at the end with nickel-plated brass film.
The bulb itself is also filled with a noble gas of some sort.

When electrical current is supplied to the positive lead terminal in the halogen bulb, it crosses a path of tungsten wire, which has very high electrical resistance. This high resistance produces the heat and light as a byproduct. Halogen low beams will normally operate on 55 watts of power. Different bulb types operate at different power ratings and outputs with varying efficiency. Halogen bulbs produce more heat than light (incandescence), which is an inefficient usage of potential energy. During usage, the tungsten atoms begin to evaporate from the filament due to the extreme heat (hence why more tightly packed tungsten coils are better for longer life). As tungsten evaporates, it deposits itself on the cooler surface of the glass bulb (hence the black residue when your bulb ceases function), and the filament becomes thinner and more brittle (subject to lower thresholds of shock). Eventually the filament will evaporate enough that the tungsten breaks the electrical circuit. Hence - a dead bulb. Because tungsten evaporates quickly, bulbs are usually filled with inert gases like argon, krypton, and xenon. These gases create a level of pressure that tungsten evaporation. Once a tungsten atom leaves the surface of the filament, it is immediately blocked by giant xenon particles. Xenon is most common because it is the heaviest of the inert gases. This explains many of the claims of Halogen sales that they have "xenon-like" properties. Xenon-filled halogen bulbs will not work indefinitely because tungsten has smaller atoms than xenon, and the atoms will deposit themselves somewhere else eventually. Halogen can also broken by overpowering the bulb (running 100W through a 50W bulb)



HIGH INTENSITY DISCHARGE (HID)

HID - gas discharge - uses a capsule (bulb) with two adjacent and connected electrodes positioned in close proximity to each other. The two electrodes return to the HID ballast, an electronic module that has a circuit board lined with several small high current capacitors, transistors, and resistors. This ballast can act as an ignition box or have a built in external ignition box (ignitor) to fire up the gas discharge process, and acts as a constant power flow control unit. The HID capsule is filled noble gases as well as alkali earth metal salts. Rather than as a buffer (as with halogen), the gases themselves are the lighting source. For quick ignition, the ballast takes in a small amount of input power of 35 watts at 12 volts and inducts a solid-state charge of 25,000 volts to the positive electrode creating a high-powered arc of electricity across the electrodes, which excites noble gases into discharging photon particles (light). This process is known as the Gas Discharge Principle. If the ballast is efficient, then the ignition process and constant flow of power can be self-contained within a single unit . Alternatively, to minimize circuit board complexity and diminish the potential for high startup energy from negatively affecting the lifespan of the constant flow circuits, an external circuit board exclusively used for the ignition process may be used. The light produced is cooler than halogen, uses less power - and is therefore more efficient - and produces more light. HID Capsules can burn at many different temperatures (changing the mixture of the gases) but as the Kelvin Temperature (the way light color is measured) goes up, the resulting output of Lumens goes down.


TERMS
Watt Electrical power (w)
Volt Electrical charge (v)

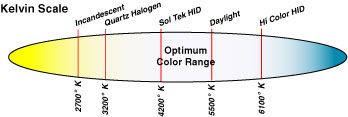

Kelvin Color temperature (K)
Lumen Light brightness (lu)
Candela Light intensity (cd)
Ampere Electrical current
Cut-off Line at which light output ceases to project
Beam Pattern Projected light pattern described by angle of lateral dispersion, width and depth of illumination.
Capsule HID Bulb aka Gas Discharge Capsules.
Optics The lighting control assembly structured around the bulb, which effects the dispersion of light and its characteristics to a great degree. See "3 Types of Headlights"
HID (High Intensity Discharge) = gas Discharge (aka Xenon)
Halogen = Incandescence (aka Filament)
PNP plug n play adapters.


Key Statistics
Up to 3X lower power usage (HID = 35W vs Halogen = 55-100W)
Up to 4X light output (HID = 2400-3200lu vs Halogen = 800-1700lu)
Up to 6X longer lasting (HID = 2500hr, halogen = 400hr)
Up to 10X more intensity (HID = 202,500cd vs Halogen = 21,000cd)


Main Benefits of HID Lighting

It is less fatiguing to the driver and other motorists (producing less infrared and ultraviolet light)
Road illumination, color contrast, and accuracy of color temperature on the road is improved.
Requires no coloring of the glass (like Halogen) to produce color contrast (which decreases Halogen life span)
With a quality housing unit, HID produce a wider and deeper beam pattern
It maintains effectiveness throughout the full lifespan of the bulbs.
Evenly distributed light without hotspots or degraded fringe output.









I got together with member Radio today we made a few lights and managed to fit some HID beamshots in. All lights where aimed at the base of the tree which was 100 yards away. All shots where taken with a Canon 20D DSLR in full manual mode so the exposure was locked for each shot.


Mac
Combined Image (Thanks Lips!)








Full Images

First up the Baseline shot




Wolf Eyes Crocodile on High (3400 Lumens)



Wolf Eyes Crocodile on Low (2000 Lumens)



Helios



XeRay 50 watt (GE Lamp *standard*)



SureFire M6



AeLight PL24 24 watt HID



SuperNova Tight Focus (Maxabeam Clone)



SuperNova Medium Focus



SuperNova Wide Focus



For Comparison my "Torch" Osram 100watt in a mag host.



X990 Narrow Focus



X990 Wide Focus





Adding some comparison shots.    Morphs from Nemul coming too!












.





« Last Edit: July 20, 2008, 12:06:32 PM by Lips »
Fire Foxes FF4 in stock and ready to ship.
You can send me a PM me here at site or contact me directly at FireFoxes@comcast.net for information.
Prices and info at the top of this post:
http://flashlight-forums.com/index.php?topic=13795.0

Offline Karl

  • Full Member
  • ***
  • Posts: 356
    • View Profile
Re: HID Bulb Temp Examples and Info
« Reply #1 on: June 23, 2008, 10:39:45 AM »
This is great information in one spot!   Thank you.


Karl

Offline stevethumb21

  • Newbie
  • *
  • Posts: 2
    • View Profile
Re: HID Bulb Temp Examples and Info
« Reply #2 on: September 12, 2013, 06:27:28 AM »
The detailed Information given by you is worth reading ! It vanishes many doubts about LED lights. Keep posting such valuable Information.
