Author Topic: Group Buy "MAXIMUS" 80 & 100 Watt HID Remote Control ~ 9000 Lumen (CLOSED)  (Read 61540 times)

0 Members and 1 Guest are viewing this topic.

Offline Lips

  • Moderator
  • Flashaholic
  • *
  • Posts: 3290
  • Mighty Fine :>) - Tasha Nicole and Marisa Miller
    • View Profile
    • Paypal = vdcjr@comcast.net

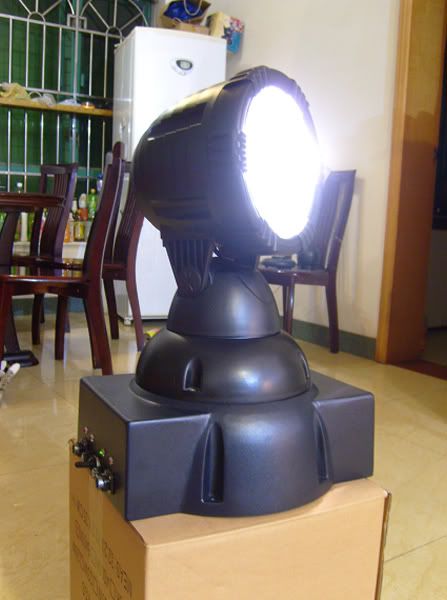

Introducing the





"MAXIMUS"





80 & 100 Watt Remote Control HID ~ 9000 Lumens

         Model A  & Model B



My understanding is it can run from 110 Volts or DC



Interest List:

1. LIPS       (Maximus Model A)                                                           Paid
2. LIPS       (Maximus Model B)                                                           Paid
3. LIPS       (15 X 80Watt Bulbs)                                                         Paid
4. LIPS       (6 X YJ  Bulbs) ( 2 for JSM and 4 available)                           Paid
5. LIPS       (6 X 60 - 100 Watt Ballast HID) (2 for Me and 2 - 4 available)  Paid
6. ShortArc  (Maximus Model B)                                                           Paid
7. ShortArc  (1 X 80Watt Bulb)                                                            Paid
8. LarryK     (Yellow Jacket HID)                                                          Paid
9. LarryK     (35 - 65 Watt Ballast)                                                       Paid
10.. LarryK     (60 - 100 Watt Ballast)                                                   Paid
11. LarryK     (Yellow Jacket Bulb)                                                        Paid
12. LarryK     (1 X Model B Bulb)                                                           Paid
13. Cue003    (Maximus Model B)                                                          NP
14. Cue003   (1 X Model B Bulb)                                                           NP
15. Joe         (Maximus Model B)                                                          NP
16. BVH        (Maximus Model B)                                                           Paid
17. BVH        (2 X Model B Bulb)                                                           Paid
18. BVH        (1 or 2 X  60 - 100w Ballast)                                             Paid
19. billhess    (Maximus Model A)                                                          Refunded
20. billhess    (Maximus Model A)                                                          Refunded
21. Patriot36  (Maximus Model B)                                                          NP
22. JetSkiMark (Maximus Model B)                                                         Paid
23. JetSkiMark       (2 X Model B Bulb)                                                   Paid
24. JetSkiMark     (Yellow Jacket HID)                                                    Paid
25. JetSkiMark   (2 X Yellow Jacket Bulb)                                                Paid
26. CarverLux     (2 X 60 - 100w Ballast)                                                 Paid
27. CarverLux     (2 X 80Watt Bulb)                                                        Paid



I think this is just what Shortarc and I have been looking for  :D
Checking price and availability now...

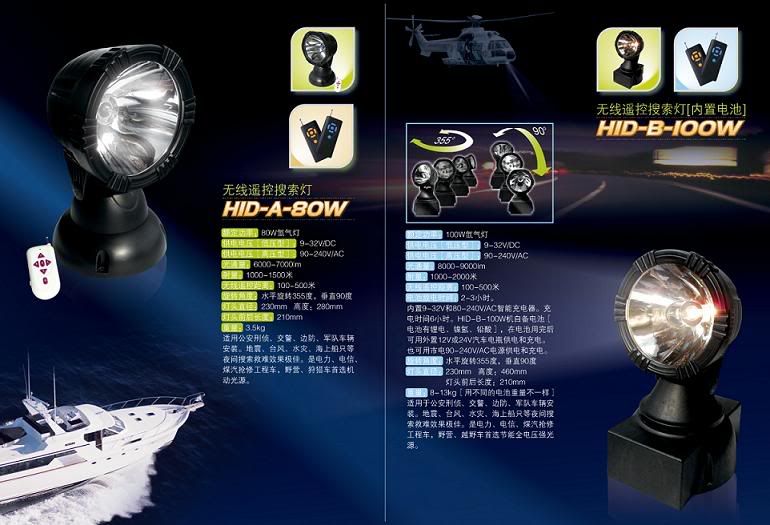

   HID-A-80W/110V is a remote control HID searchlight. The remote controller can control the main unit/device within 200M on the rotation angle and lighting method. It can freely rotate upward and downward as well as rightward and leftward directed by user. It is equipped with remote controlled motor protective device and can rotate at 440℃ for rightward and leftward and at 75℃ for upward and downward.  Unit sizes:230*230*320mm。

   It is highly focused and the lighting distance is as far as over 。This device is easily installed with the readily available mounting base, which is to be easily installed and applied in house roof and other places.

   80w-HID Xenon searchlight,Lighting flux:7000LM

   Specifications:
   A、HID-80W/110-220V, HID-65W/110-220V  B、HID-80W/9-32V。HID-65W/9-32V。











Ours will be 80 watt Model A and 100 watt Model B  HID Lights...

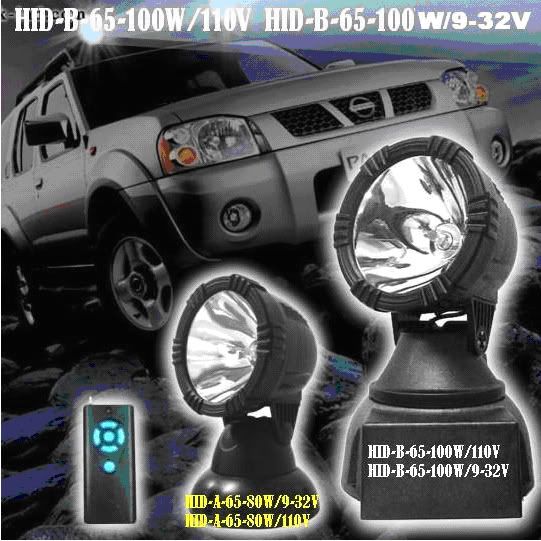

HID-B-65-100W/9-32V/DC[90-260V/AC]  Lithium Ion Built into base with Magnet

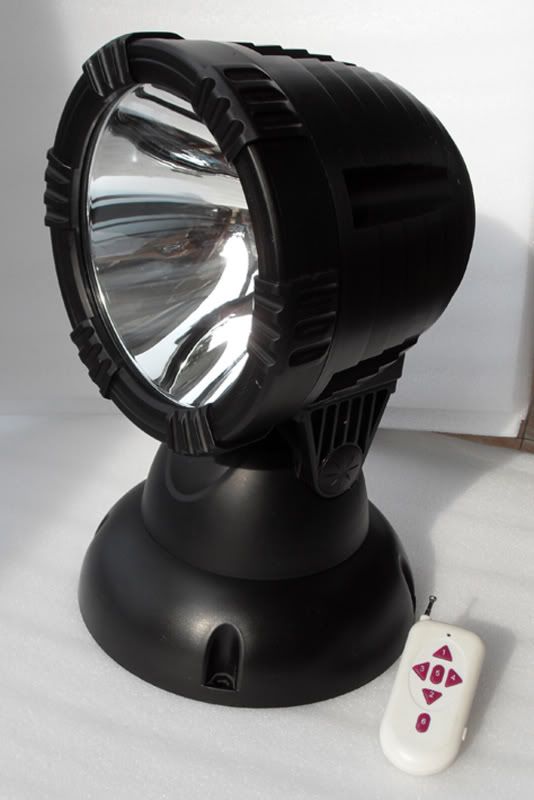

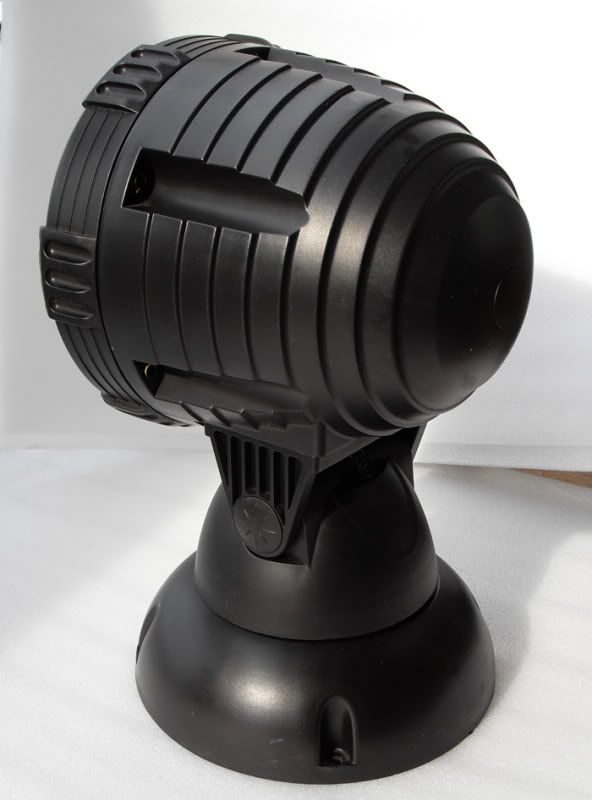

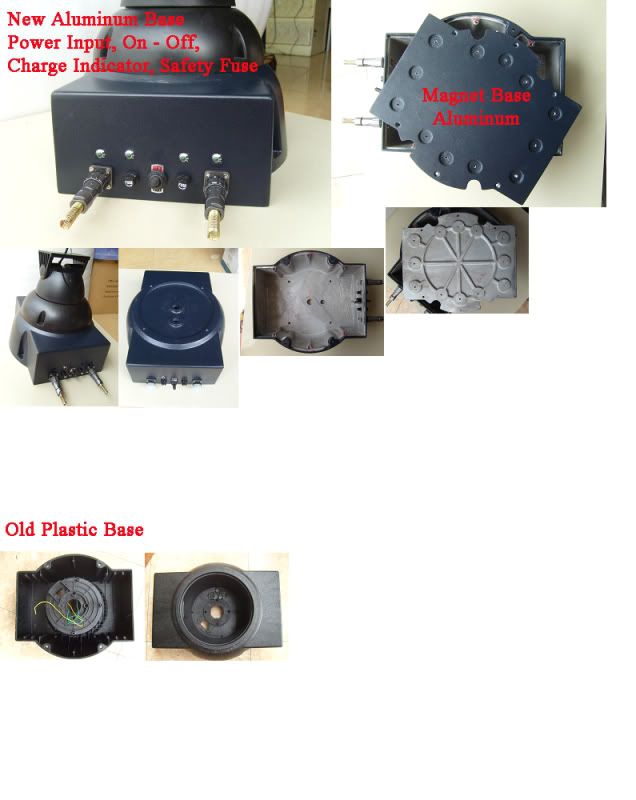

Model A on Left and Model B on Right









Some General Specs on Model B:

Specification details; unit sizes and weight:

Sizes: 295x260x460mm
Weight: 10kgs (22 pounds) including the built-in battery pack
Bulb life: 1500-2000 hours
Vertical motion angle: 120 degrees
Horizontal motor angle: 360 degrees
Remote controlled
Brightness: 3200lm - 9000lm / 35W-100W
Color temperature: 4300k
Power: 35-100W (Total Watt)
Bulb specs: H4
Battery releasing time( for lithium battery): 2 hours under 100w

http://www.magnalight.com




Magnetic Base with 100 Pounds of Magnetic Gripping Power - MM-2     $21

OR

Magnetic Base with 200 pounds of Magnetic Grip for Spotlights - MM-5        $24

&




MMP-1 Magnetic Mounting Plate    $24.99


&


$49 Converter ( I bought for a 3000 lb remote controll wench ) for those that get the DC version and would like to run from AC power source. Lux Luther could probably also make a battery-pack to run this light from a remote location...





SPEC LIST Maxiums Model A & B







Maximus Model    A:




80 Watt Ballast/80w bulb @ 4300k   (Fast Start & Hot Re-strike) (around 90 % efficiency)


Aluminum Alloy Reflector – Coated


Glass Lens


Magnet in Base


AC Power Cord – 6 meters in length with Built-out 300 watt adaptor for powering Model A (removable cord at light)


DC Power Cord – 6 meters in length 12 -24 volt (removable cord at light)


__________________________________________________

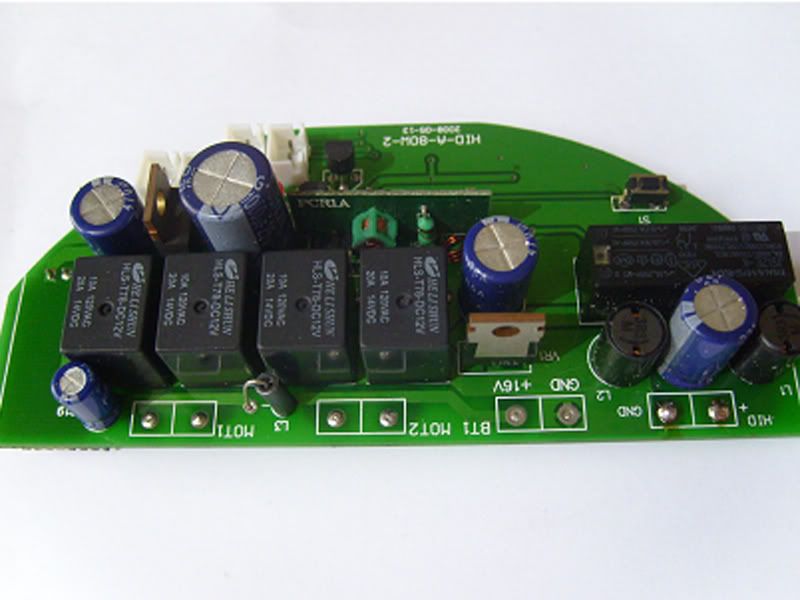

6 motors total per light – the medium motors installed in light for horizontal and vertical axis.

2 extra motors for vertical axis (1 higher and 1 lower than the medium motor)


PLUS


2 extra motors for horizontal axis ( 1 higher and 1 lower than the medium motor)

 for 4 extra motors
__________________________________________________



440 degree turn radius  75 degree up and down



Remote Control with a high / low setting, up and down, right and left and a on/off.
50% units with (315MHz) and 50% units with (433MHz). Please mark outside of units (tape) with corresponding frequency for shipping to customers.

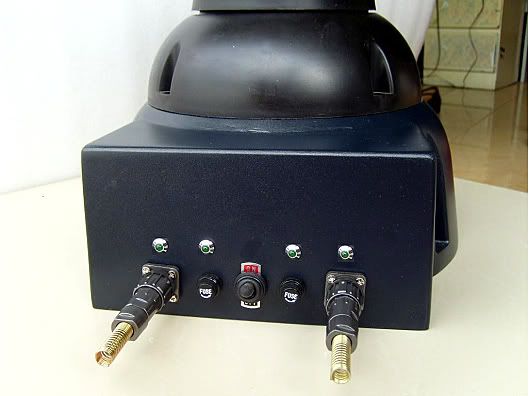

On / Off safety switch that is weather resistant and built onto the light that cuts power to ballast. This would cut-off power to ballast for accidental ON/OFF or power drain of battery… This does not necessarily need to turn light on or off…









Maximus Model    B:



100 Watt Ballast/80w bulb @4300K   (Fast Start & Hot Re-strike) (around 90 % efficiency)


Aluminum Alloy Reflector – Coated


Glass Lens


Magnet in Base


AC Power Cord – 6 meters in length with Built-out 300 watt adaptor for powering Model B (removable cord at light)


DC Power Cord – 6 meters in length 12 -24 volt (removable cord at light)


__________________________________________________
6 motors total per light – the medium motors installed in light for horizontal and vertical axis.

2 extra motors for vertical axis (1 higher and 1 lower than the medium motor)


 PLUS


2 extra motors for horizontal axis ( 1 higher and 1 lower than the medium motor)

 for 4 extra motors
__________________________________________________



360 degree turn radius  120 degree up and down


Remote Control with a high / low setting, up and down, right and left and a on/off.
50% units with (315MHz) and 50% units with (433MHz). Please mark outside of units (tape) with corresponding frequency for shipping to customers.


14.4 Volt / 16.8  Lithium Ion Battery installed in base with approx  2 hr release time at 100 watt. Protected at overcharge and over dis-charge of battery.


On / Off safety switch that is weather resistant and built onto the light that cuts power to ballast. This would cut-off power to ballast for accidental ON/OFF or power drain of battery… This does not necessarily need to turn light on or off…

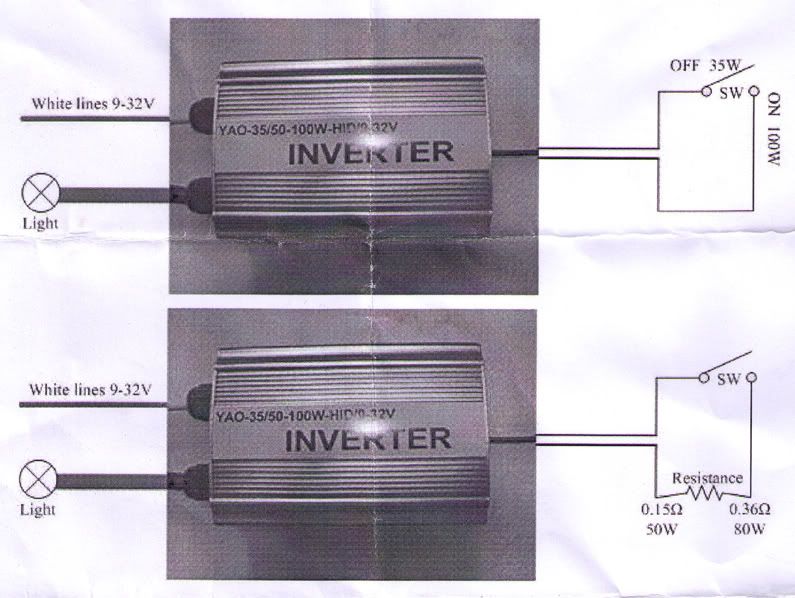

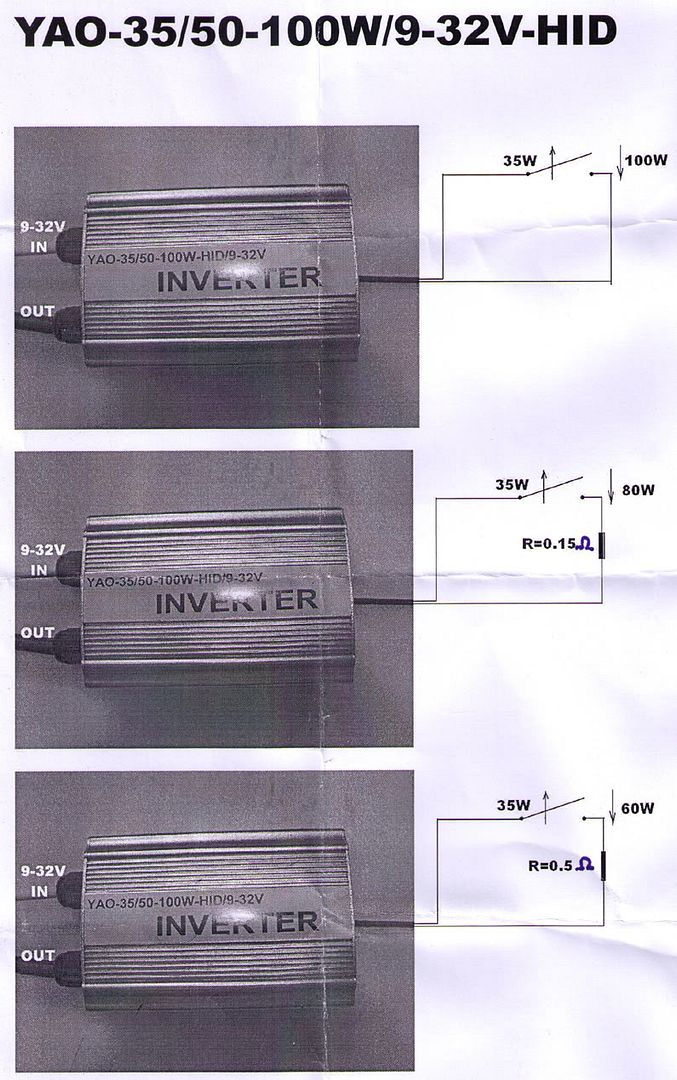

Here's what's in the mail (3 for each ballast) and I'll put this in the first post...




.15 r   1 W

.36 r   1 W

.5 r     2 w


Wiring to the battery or DC power source is,
Brown wire equals positive, Blue wire equals negative.
The Green with yellow stripe wire is not used. (LarryK)








.
« Last Edit: February 25, 2009, 10:35:13 AM by Lips »
Fire Foxes FF4 in stock and ready to ship.
You can send me a PM me here at site or contact me directly at FireFoxes@comcast.net for information.
Prices and info at the top of this post:
http://flashlight-forums.com/index.php?topic=13795.0

Offline ShortArc

  • Newbie
  • *
  • Posts: 33
    • View Profile
Re: "WIDOW MAKER" 80 Watt Remote Controll 7000 Lumen
« Reply #1 on: March 06, 2008, 01:05:28 PM »
Very Cool.  8)
I am game! Group buy anyone?
Lips, are you sure it is option A (AC) and B (DC)? That would be great!

Offline Lips

  • Moderator
  • Flashaholic
  • *
  • Posts: 3290
  • Mighty Fine :>) - Tasha Nicole and Marisa Miller
    • View Profile
    • Paypal = vdcjr@comcast.net
Re: "WIDOW MAKER" 80 Watt Remote Controll 7000 Lumen
« Reply #2 on: March 06, 2008, 03:53:26 PM »
Very Cool.  8)
I am game! Group buy anyone?
Lips, are you sure it is option A (AC) and B (DC)? That would be great!







Group Buy              Group Buy                  What?





Why group buys for HID's Lights is almost unheard of these days! Nobody wants to play ball!






Howabouts we at least start up an Interest List for this 80 watt Remote Controll HID light... I believe you are correct in that we would have to choose 110v or the DC cigarette charger plug model. Either unit would be able to run multiple ways with (AC-DC or DC AC) inverters though...



Say $450 shipped to your household...  WOW!   7000 Lumen Remote Control HID



How far is 200 meters in Feet anyway  :-[



Hmm, maybe even the 2nd person in line could get a discount...



ShortArc are you up to keeping track of interest list in your Post that's Reply  #1



I haven't seen this light in person so everyone takes a chance like me    :D



Any Interest ?



  5 unit minimun   and 8  - 10 Units may even lower the price a bit...





.
« Last Edit: April 13, 2008, 05:22:01 AM by Lips »
Fire Foxes FF4 in stock and ready to ship.
You can send me a PM me here at site or contact me directly at FireFoxes@comcast.net for information.
Prices and info at the top of this post:
http://flashlight-forums.com/index.php?topic=13795.0

Offline ShortArc

  • Newbie
  • *
  • Posts: 33
    • View Profile
Re: "WIDOW MAKER" 80 Watt Remote Controll 7000 Lumen
« Reply #3 on: March 06, 2008, 05:00:39 PM »
Lips,
Ordinarily I ABSOLUTELY would be up for keeping track of the interest list but I am off to Europe later next week and will buried with work (back in about a week).
Glad I got on the list early! Great find there Lips!  :thumbup:

Offline Lips

  • Moderator
  • Flashaholic
  • *
  • Posts: 3290
  • Mighty Fine :>) - Tasha Nicole and Marisa Miller
    • View Profile
    • Paypal = vdcjr@comcast.net
Re: "WIDOW MAKER" 80 Watt Remote Controll 7000 Lumen
« Reply #4 on: March 06, 2008, 05:32:09 PM »
Lips,
Ordinarily I ABSOLUTELY would be up for keeping track of the interest list but I am off to Europe later next week and will buried with work (back in about a week).
Glad I got on the list early! Great find there Lips!  :thumbup:



No Problem!   Enyoy your trip   :D



.
Fire Foxes FF4 in stock and ready to ship.
You can send me a PM me here at site or contact me directly at FireFoxes@comcast.net for information.
Prices and info at the top of this post:
http://flashlight-forums.com/index.php?topic=13795.0

Offline Lips

  • Moderator
  • Flashaholic
  • *
  • Posts: 3290
  • Mighty Fine :>) - Tasha Nicole and Marisa Miller
    • View Profile
    • Paypal = vdcjr@comcast.net
Re: "WIDOW MAKER" 80 Watt Remote Controll 7000 Lumen
« Reply #5 on: March 07, 2008, 01:26:13 AM »


Interest List for now...

Adding

3. LarryK  (Yellow Jacket HID)



.
Fire Foxes FF4 in stock and ready to ship.
You can send me a PM me here at site or contact me directly at FireFoxes@comcast.net for information.
Prices and info at the top of this post:
http://flashlight-forums.com/index.php?topic=13795.0

Offline nemul

  • Flashaholic
  • *****
  • Posts: 2997
  • ChamSeoul
    • View Profile
    • ::adam::
Re: "WIDOW MAKER" 80 Watt Remote Controll 7000 Lumen
« Reply #6 on: March 07, 2008, 06:11:50 AM »
wow, $450 shipped for 7000 lumens...
nemul

Offline cue003

  • Full Member
  • ***
  • Posts: 130
    • View Profile
Re: "WIDOW MAKER" 80 Watt Remote Controll 7000 Lumen
« Reply #7 on: March 07, 2008, 07:08:31 AM »
I am interested.
-- CUE

Offline Lips

  • Moderator
  • Flashaholic
  • *
  • Posts: 3290
  • Mighty Fine :>) - Tasha Nicole and Marisa Miller
    • View Profile
    • Paypal = vdcjr@comcast.net
Re: "WIDOW MAKER" 80 Watt Remote Controll 7000 Lumen
« Reply #8 on: March 08, 2008, 08:28:25 AM »




Interest List Updated...  (Those interested Need to pick 110 - 240v or DC Model)


I think we have enough to go forward.  We'll give it some more time to add more people...





This is some parts for a good Magnetic Roof-Mount Vehicle Assembly:


http://www.magnalight.com




Magnetic Base with 100 Pounds of Magnetic Gripping Power - MM-2     $21

OR

Magnetic Base with 200 pounds of Magnetic Grip for Spotlights - MM-5        $24

&




MMP-1 Magnetic Mounting Plate    $24.99



&



$49 Converter ( I bought for a 3000 lb remote controll wench ) for those that get the DC version and would like to run from AC power source. Lux Luther could probably also make a battery-pack to run this light from a remote location...





Cheers!
« Last Edit: March 08, 2008, 02:16:17 PM by Lips »
Fire Foxes FF4 in stock and ready to ship.
You can send me a PM me here at site or contact me directly at FireFoxes@comcast.net for information.
Prices and info at the top of this post:
http://flashlight-forums.com/index.php?topic=13795.0

Offline Lips

  • Moderator
  • Flashaholic
  • *
  • Posts: 3290
  • Mighty Fine :>) - Tasha Nicole and Marisa Miller
    • View Profile
    • Paypal = vdcjr@comcast.net
Re: Group Buy "WIDOW MAKER" 80 Watt Remote Controll 7000 Lumen
« Reply #9 on: March 10, 2008, 02:13:53 AM »



Larger Pic updated:



Also Manufacturer will customize the motor selection for Left - Right and Up - Down for these lights. I discussed the slow operation of a test unit I had from another company and they will put a fast motor in these for us... They have a small motor division of the company they operate so that's cool!   :thumbup:



.
Fire Foxes FF4 in stock and ready to ship.
You can send me a PM me here at site or contact me directly at FireFoxes@comcast.net for information.
Prices and info at the top of this post:
http://flashlight-forums.com/index.php?topic=13795.0

Offline cue003

  • Full Member
  • ***
  • Posts: 130
    • View Profile
Re: Group Buy "WIDOW MAKER" 80 Watt Remote Controll 7000 Lumen
« Reply #10 on: March 10, 2008, 02:25:24 AM »
I am having a hard time really visualizing the size of this thing.  any pictures etc of it mounted or of it next to other lights or next to someone etc for a better visual cue as to size?

I am also still trying to decide whether it would be better to get a DC unit or just get an AC unit and buy myself a good DC inverter.

What are you guys thoughts?

Curtis
-- CUE

Offline Lips

  • Moderator
  • Flashaholic
  • *
  • Posts: 3290
  • Mighty Fine :>) - Tasha Nicole and Marisa Miller
    • View Profile
    • Paypal = vdcjr@comcast.net
Re: Group Buy "WIDOW MAKER" 80 Watt Remote Controll 7000 Lumen
« Reply #11 on: March 10, 2008, 10:20:29 AM »




Size =   9 inches   Wide    X    9 inches   Deep   X   12.6 inches Tall


It's about the same size as the unit in the two videos below. A little taller maybe...




Prototype from another company (motor too slow...)

[yt=425,350]my-rPzu_mjM[/yt]



[yt=425,350]AjJg3Kzv_5g[/yt]








I have a good recomendation for DC I'll give later   ;)






We put our order in sooner, the sooner we get it!



.
Fire Foxes FF4 in stock and ready to ship.
You can send me a PM me here at site or contact me directly at FireFoxes@comcast.net for information.
Prices and info at the top of this post:
http://flashlight-forums.com/index.php?topic=13795.0

Offline Lips

  • Moderator
  • Flashaholic
  • *
  • Posts: 3290
  • Mighty Fine :>) - Tasha Nicole and Marisa Miller
    • View Profile
    • Paypal = vdcjr@comcast.net
Re: Group Buy "WIDOW MAKER" 80 Watt Remote Controll 7000 Lumen
« Reply #12 on: March 12, 2008, 02:51:00 AM »




I am having a hard time really visualizing the size of this thing.  any pictures etc of it mounted or of it next to other lights or next to someone etc for a better visual cue as to size?

I am also still trying to decide whether it would be better to get a DC unit or just get an AC unit and buy myself a good DC inverter.

What are you guys thoughts?

Curtis





I believe the DC  vs  AC powersource argument/decision would be based on the requirement of portability for the unit…




A DC based unit would give the benefit of:

   Battery Power
   Vehicle Power
   AC to DC Converter Power (cheap)


-   Placement on House Rooftop
-   Placement in Yard for Security
-   Placement at Campsite/park  on Hill or Pier
-   Ideal for large farm or property remote locations.
-   Placement at Any Remote Location via Battery Power…




Quick disconnects such as these .50 cents (parker vehicle lighting & weather proof @ ebay) would give a BarnBurner or Rayzorlite or LuxLuthor Battery pack a quick disconnect capability for powering the unit in any remote location you could think of. A BarnBurner extra pack would still be able to be used with its intended source with little effort.




Power & Direct  the remote unit from inside your house – boat - campsite!





An AC based unit would give constant power without worrying about runtime or batteries… You would still have mobility with an DC to AC converter for vehicle or remote use…





When asking about a fast motor I also mentioned some Remote Units that had a Remote control that used Dual based speed controller. A half press = slow/fine targeting and a full press = fast/quick targeting.  I suggested this be considered for future upgrade models. I was informed that this was possible with the lights NOW! I’m not sure whether this would be an upgrade or not ($)… Hopefully this will be included with the lights as they stand…



More later!


.
Fire Foxes FF4 in stock and ready to ship.
You can send me a PM me here at site or contact me directly at FireFoxes@comcast.net for information.
Prices and info at the top of this post:
http://flashlight-forums.com/index.php?topic=13795.0

Offline Lips

  • Moderator
  • Flashaholic
  • *
  • Posts: 3290
  • Mighty Fine :>) - Tasha Nicole and Marisa Miller
    • View Profile
    • Paypal = vdcjr@comcast.net
Re: Group Buy "MAXIMUS" 80 Watt Remote Controll 7000 Lumen
« Reply #13 on: March 12, 2008, 01:25:10 PM »

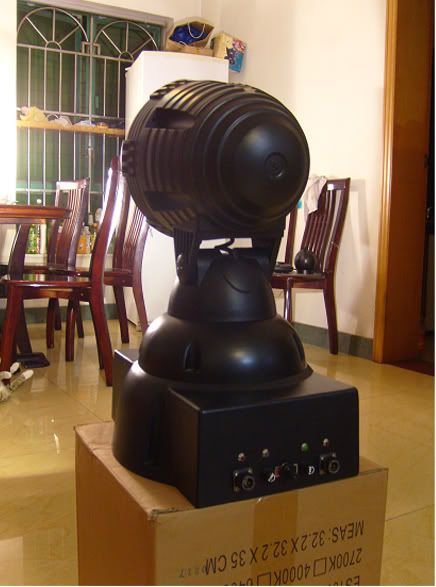

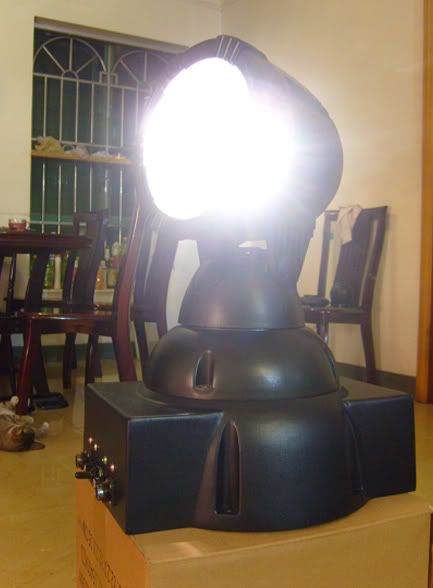

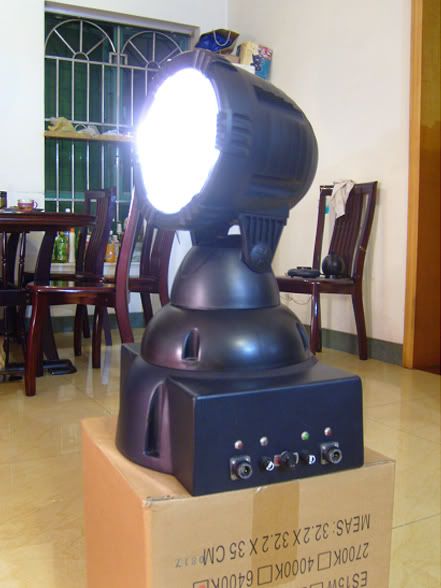

OK,   We gonna have a name change




Introducing the




MAXIMUS










Me Chinese friends thought "Widow Maker" may be too strong of a name; All that money China's making these days must be having a liberal or maybe even a Politically Correct effect...  Next thing ya know they'll be listening to Punk-Rock music and Bad Mouthing their Counrty    :laughing7:






Hey Tonyd, I told you someone soon would name a light Maximus    ;)





.
Fire Foxes FF4 in stock and ready to ship.
You can send me a PM me here at site or contact me directly at FireFoxes@comcast.net for information.
Prices and info at the top of this post:
http://flashlight-forums.com/index.php?topic=13795.0

Offline Lips

  • Moderator
  • Flashaholic
  • *
  • Posts: 3290
  • Mighty Fine :>) - Tasha Nicole and Marisa Miller
    • View Profile
    • Paypal = vdcjr@comcast.net
Re: Group Buy "MAXIMUS" 80 Watt Remote Controll 7000 Lumen
« Reply #14 on: March 14, 2008, 01:43:08 PM »



I've asked for the following specs be built into our lights. No confirmation on this yet...



Rotating motor speed of  15 inches / 381mm per second travel on high speed.

                                      5 inches / 127 mm per second travel on slow speed. (approximate amounts) The specs could be refined on another batch to follow…



Also, if an extra button is available on the remote that would allow for say a slow sweep of 110 degrees back and forth would be a major plus (maybe on later models if not now). Some Marine lights I have seen are capable of such...



.
Fire Foxes FF4 in stock and ready to ship.
You can send me a PM me here at site or contact me directly at FireFoxes@comcast.net for information.
Prices and info at the top of this post:
http://flashlight-forums.com/index.php?topic=13795.0
